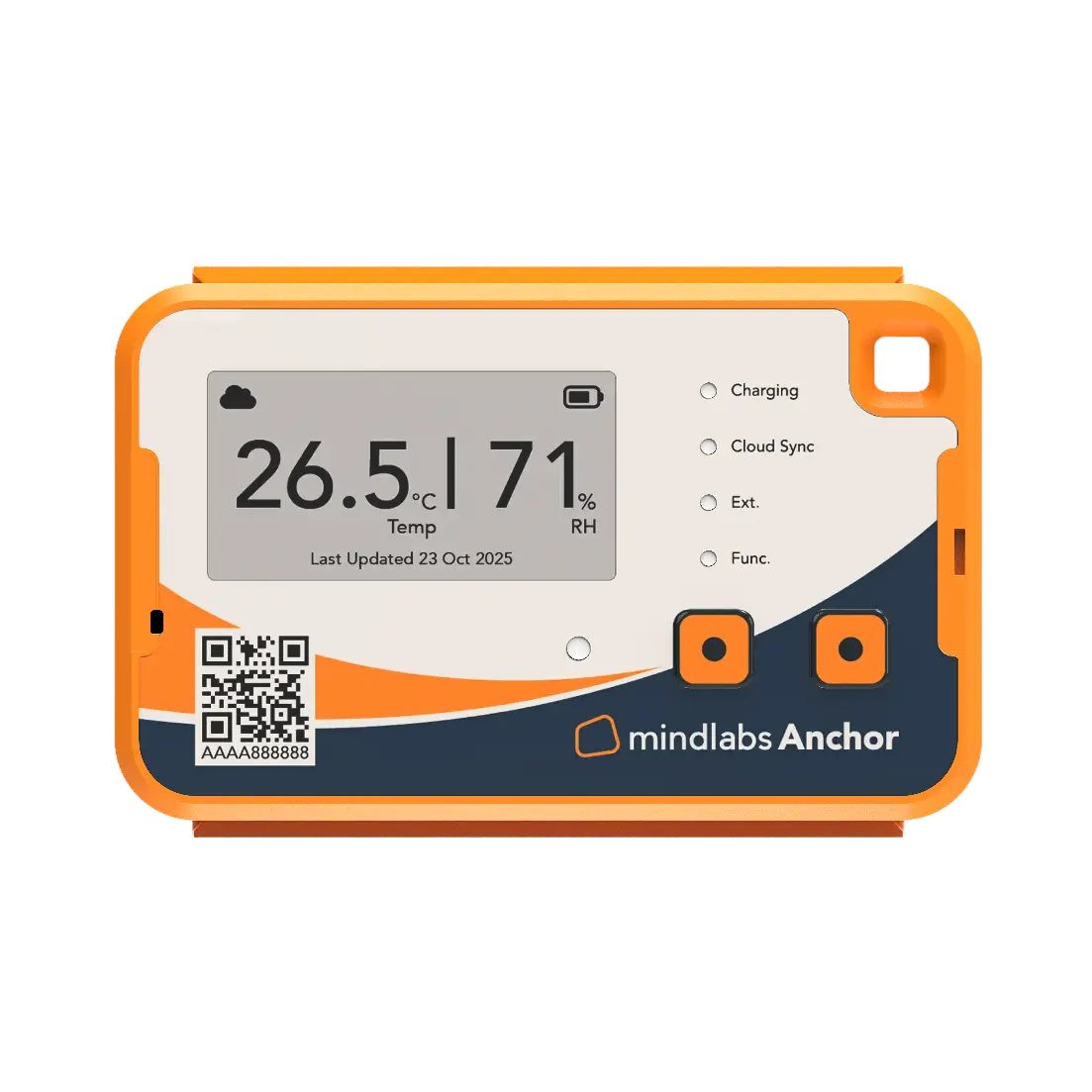

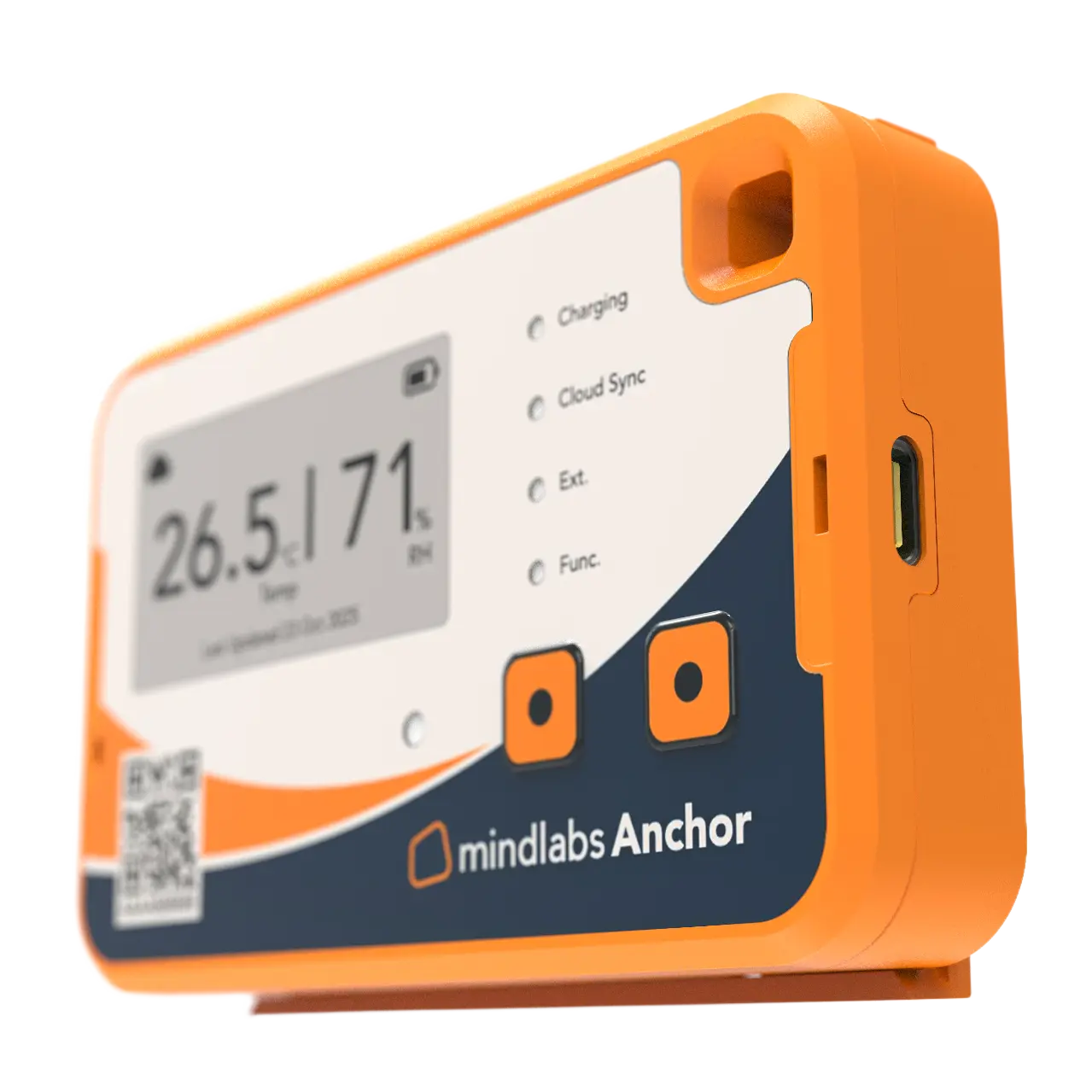

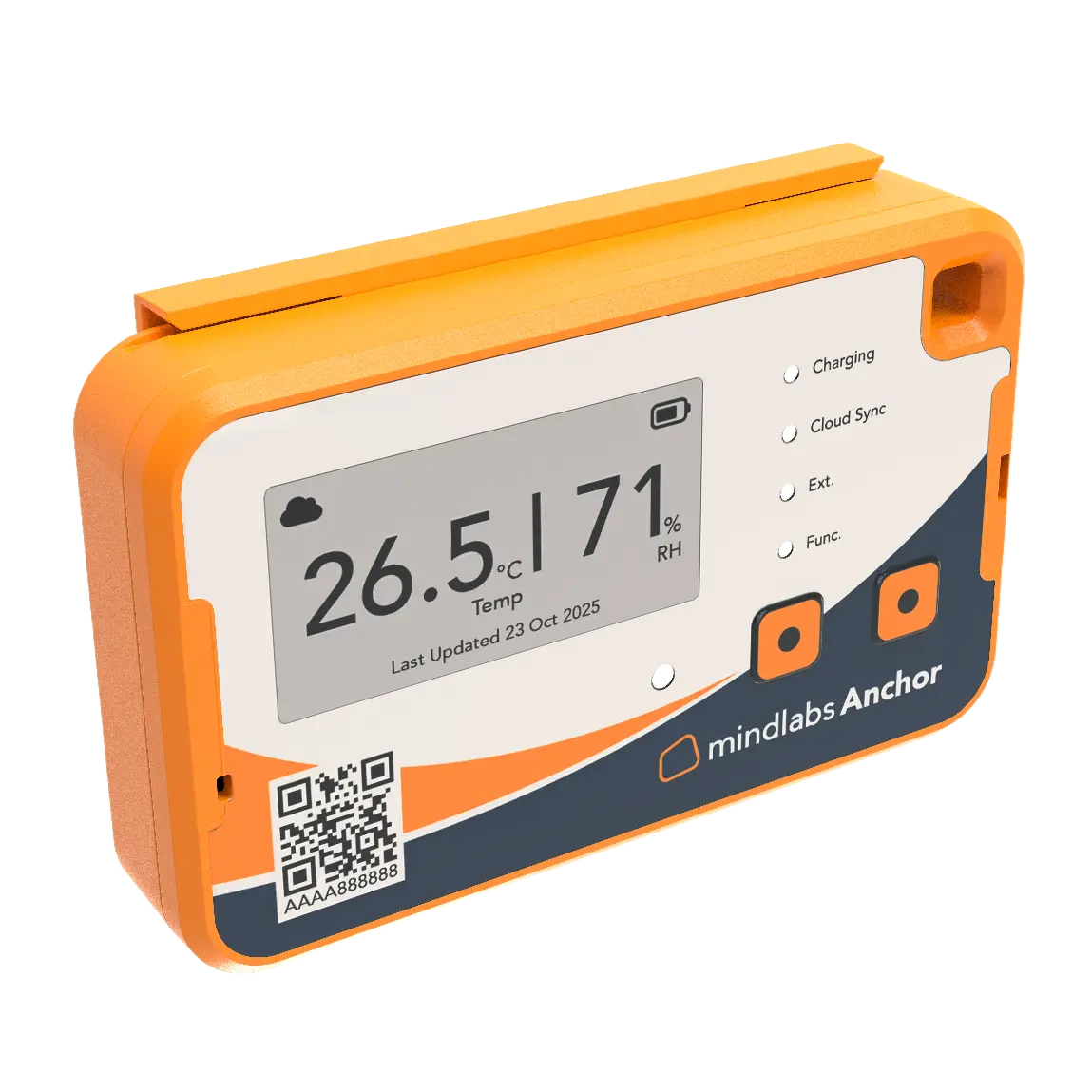

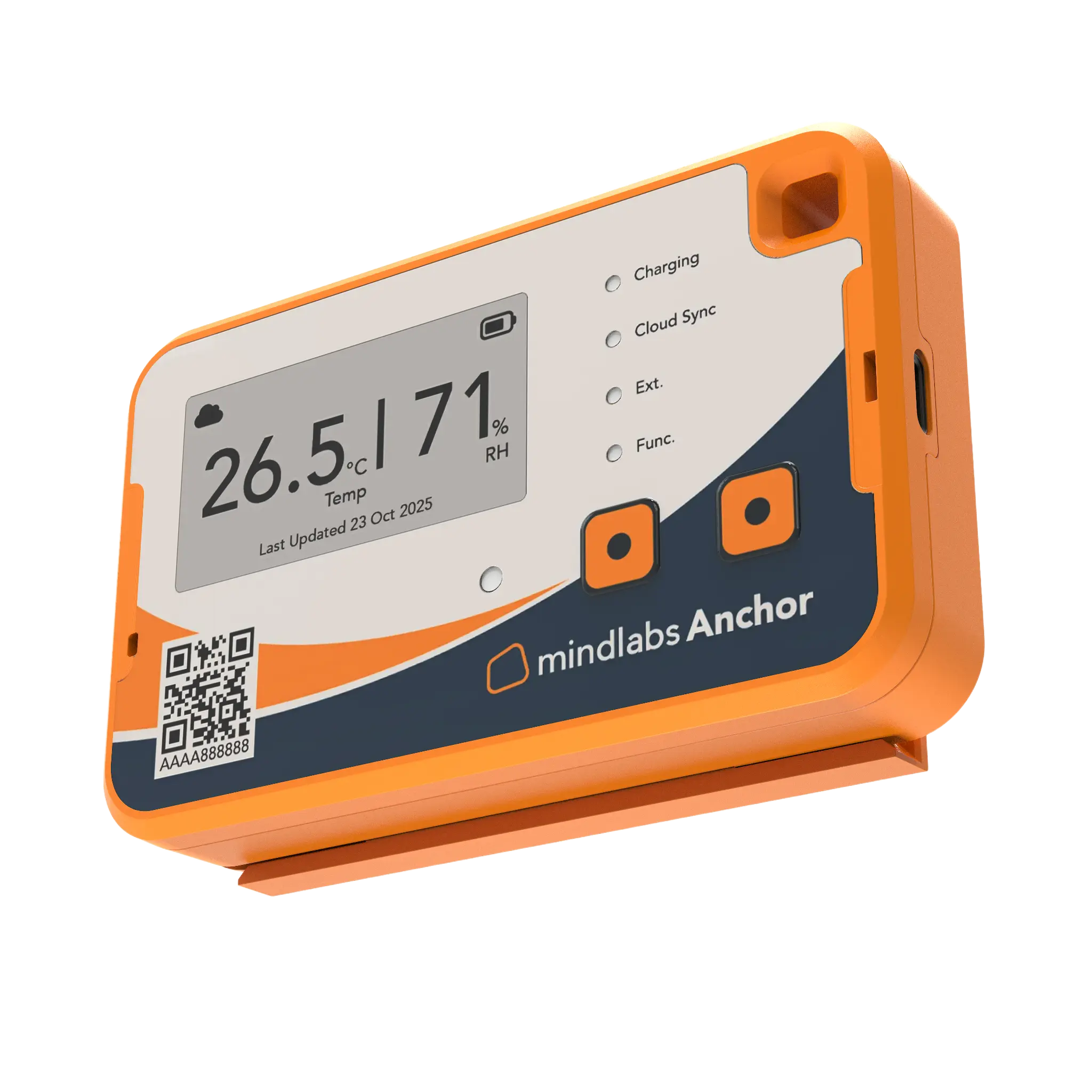

Mindlabs Anchor
Mindlabs Anchor
Premium multi-sensor IoT wireless temperature and humidity data logger for cold chain and environmental monitoring.

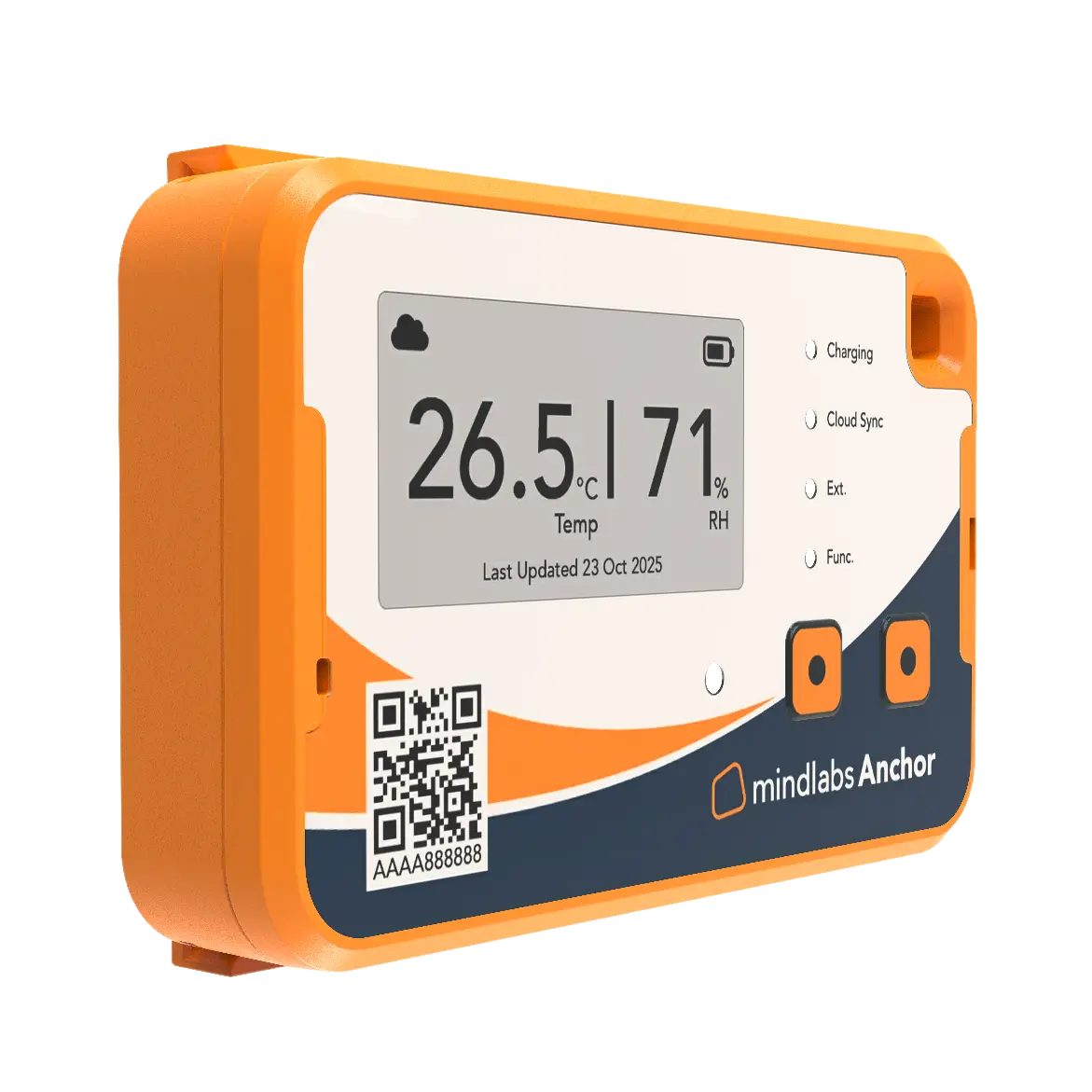

Mindlabs Anchor features a real-time e-ink display along with temperature, humidity, and gas sensors. It also sends email and SMS alerts to enable proactive product maintenance.
₹18,999
Optimized For
Why Choose Anchor?
Built for reliability in the most demanding environments.
Real-Time On-Device Display
Instant visibility of critical metrics.
1-Year on Single Charge
Rechargeable Li-ion 8000 mAh battery.
Global 4G/2G & Wi-Fi connectivity
Seamless connectivity across 190+ countries.
Web Dashboard + Mobile App
Intuitive dashboards for complete control.
Connect External Sensors
Tracks Temperature & Humidity
Mobile & Web Notifications
Instant alerts for any deviations.
21 CFR Part 11 compliant solution
Audit logs and reports for traceability
Wireless Alarm support
Connect a wireless alarm that generates sound and visual alarms
Real-Time On-Device Display
Instant visibility of critical metrics.
1-Year on Single Charge
Rechargeable Li-ion 8000 mAh battery.
Global 4G/2G & Wi-Fi connectivity
Seamless connectivity across 190+ countries.
Web Dashboard + Mobile App
Intuitive dashboards for complete control.
Connect External Sensors
Tracks Temperature & Humidity
Mobile & Web Notifications
Instant alerts for any deviations.
21 CFR Part 11 compliant solution
Audit logs and reports for traceability
Wireless Alarm support
Connect a wireless alarm that generates sound and visual alarms
See Anchor in Real Environments
Deployed across industries for reliable monitoring and compliance

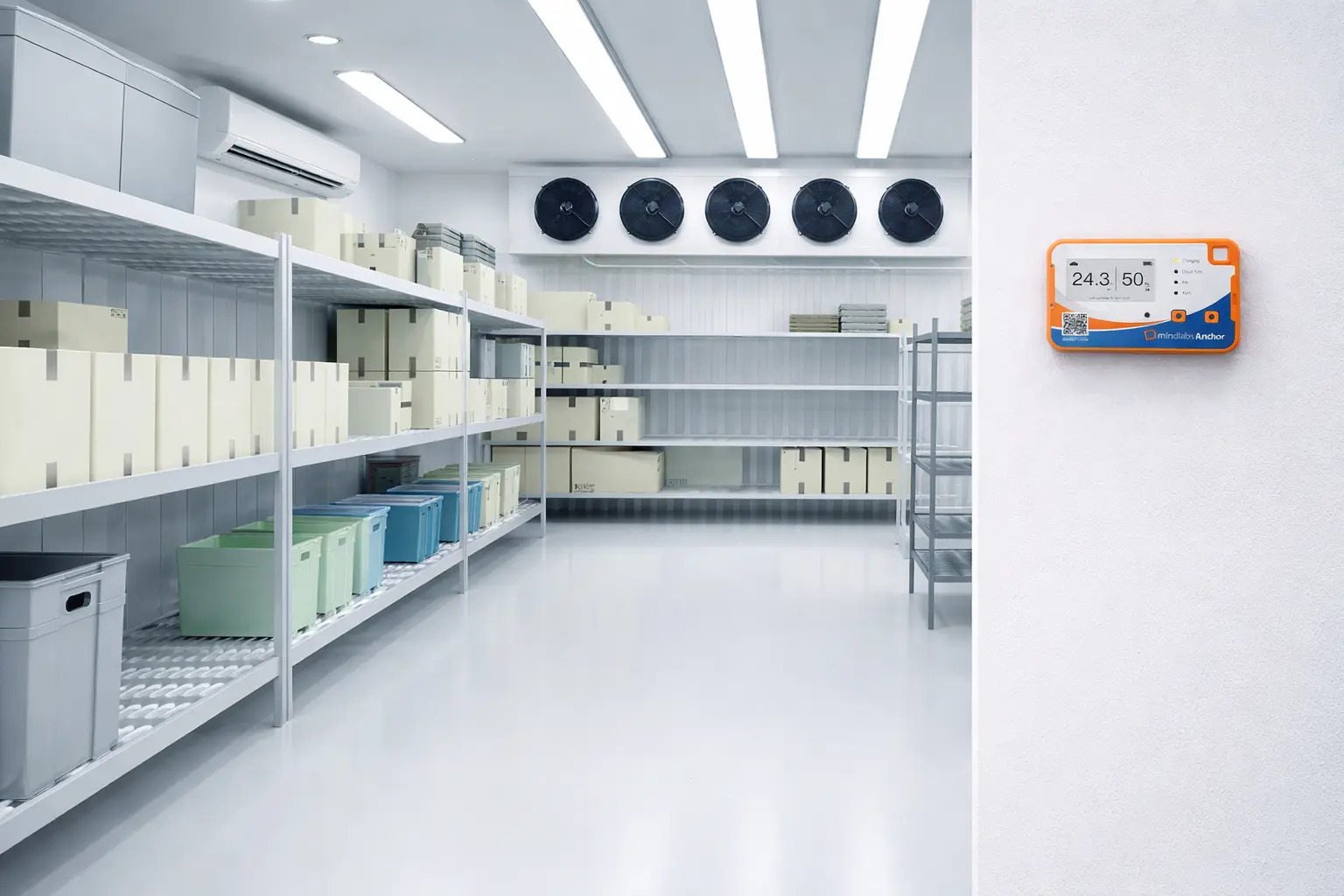

Clean Room Monitoring
Real-time temperature and humidity tracking in pharmaceutical cleanrooms with data logging
Clean Room Monitoring
Real-time temperature and humidity tracking in pharmaceutical cleanrooms with data logging

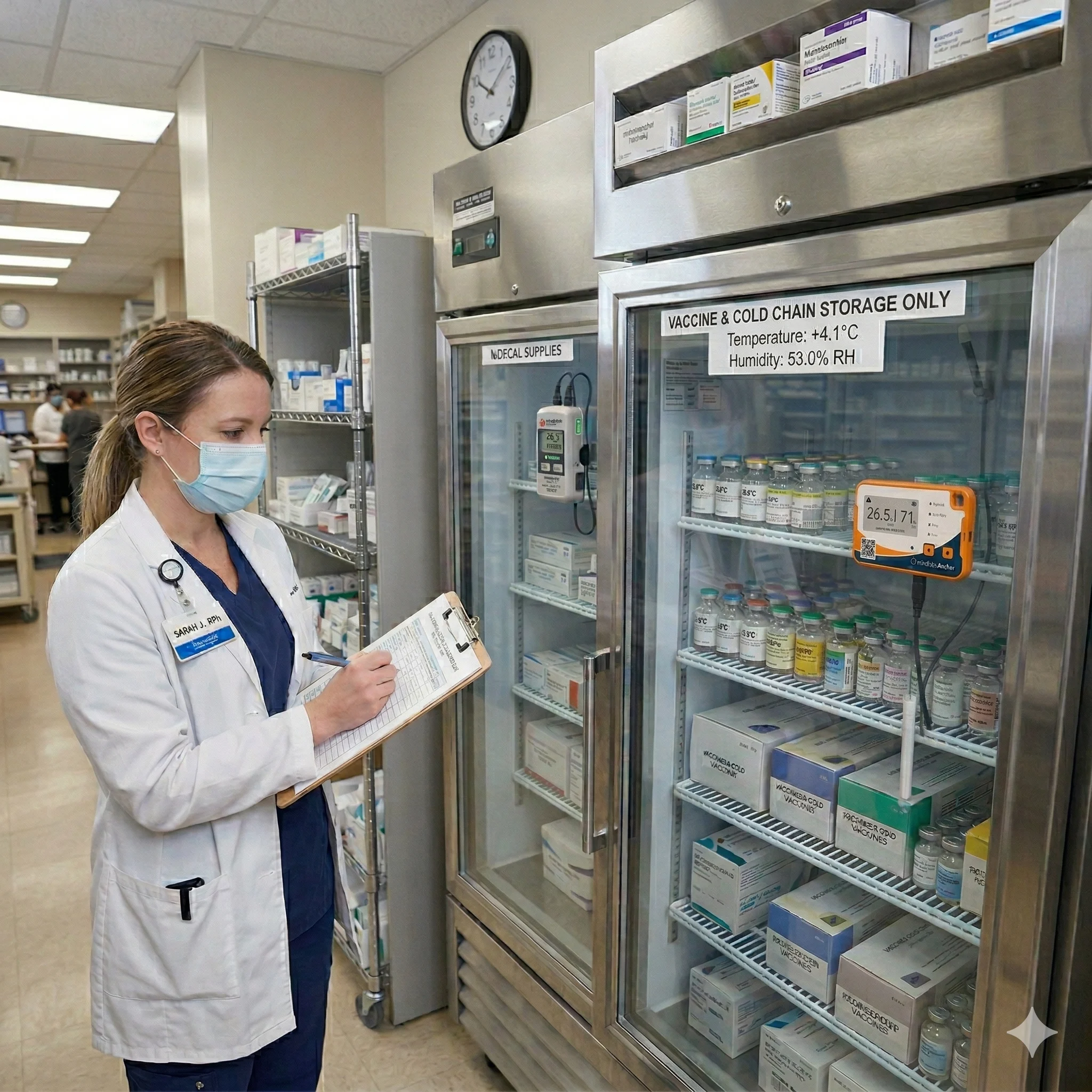

Vaccine Storage
Temperature and humidity monitoring for vaccine storage with data logging

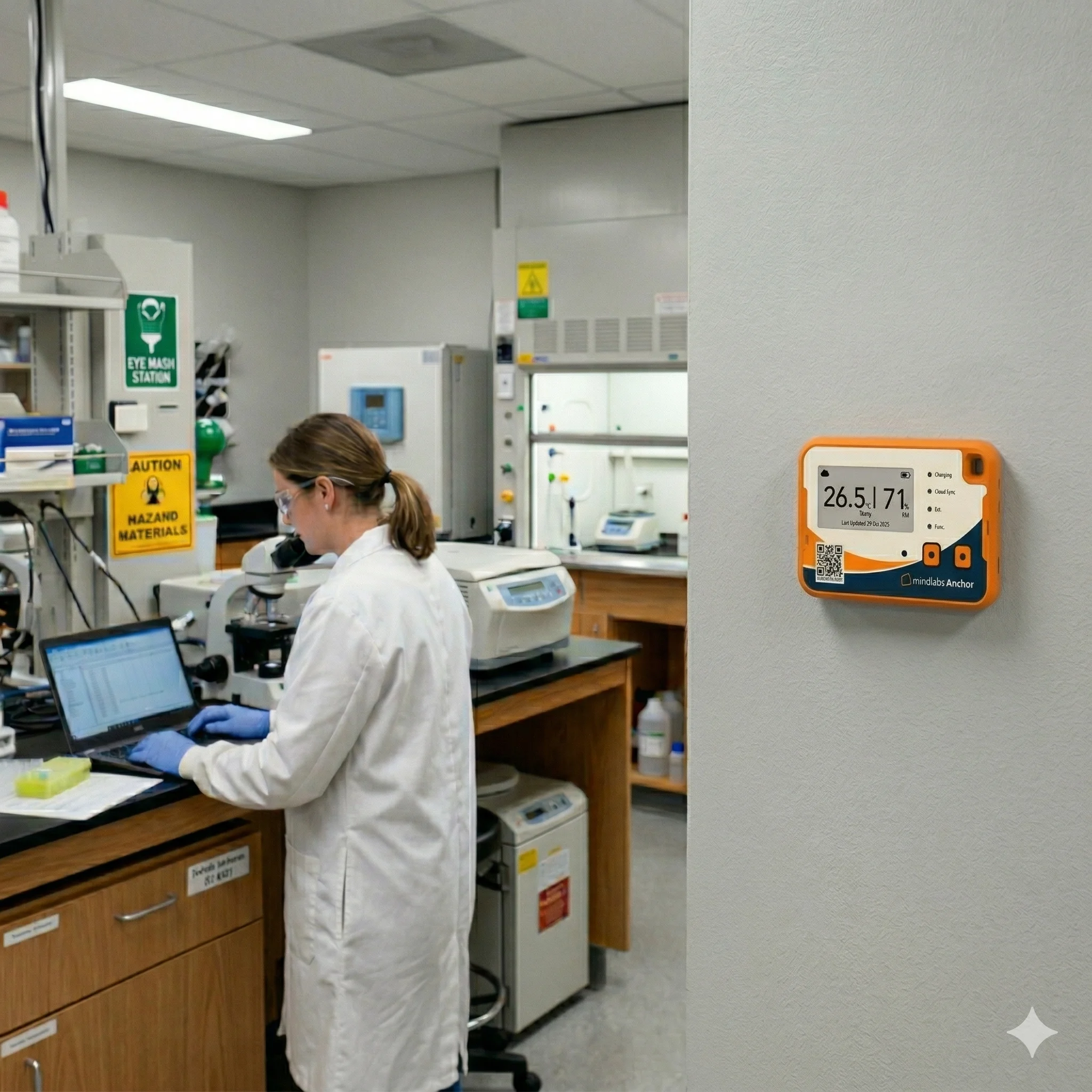

Laboratory Installation
Precise environmental monitoring in research facilities with data logging

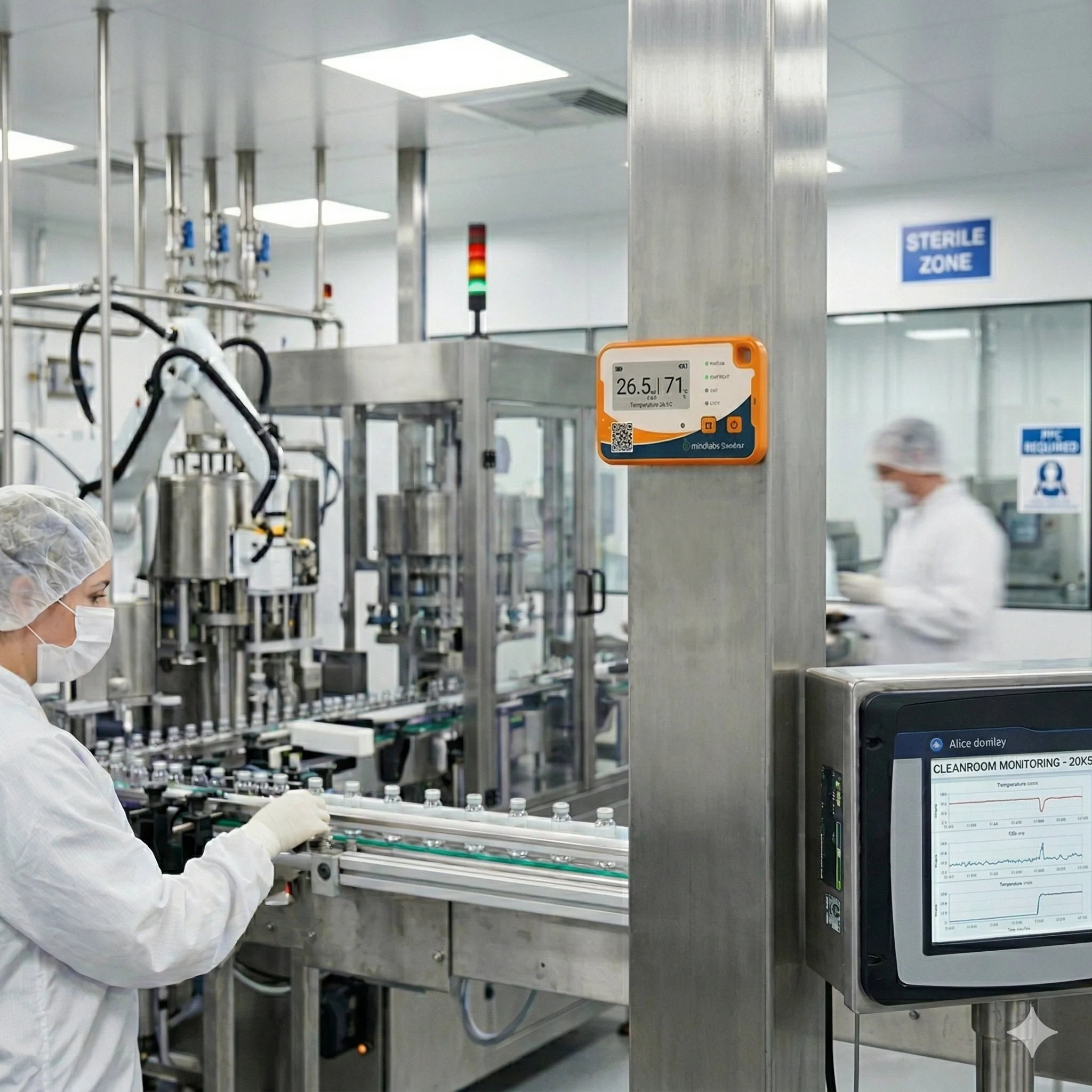

Manufacturing Floor
Multi-parameter monitoring in pharma production areas with data logging
Technical Specifications
Sensor Performance
- Temperature Range-30°C to 70°C
- Temp Accuracy±0.5°C
- Temp Resolution0.1°C
- Humidity Range0% to 100% RH
- Humidity Accuracy±3%
- Humidity Resolution1%
Connectivity
- Cellular4G (CAT-1), 2G
- Wi-Fi2.4GHz
- LocationCellular + Wi-Fi Triangulation
- Global Roaming190+ Countries
Power & Battery
- Battery TypeLi-ion, 8000 mAh
- Runtime1-Year on Single Charge
- ChargingUSB-C 5V
- Recharge Time~12 Hours
Display
- TypeE-Ink
- StatusAlways On Display
Operational
- ActivationAlways On, No Poweroff
- Transmission Interval30 mins to 24 hrs
- Logging Interval5 mins to 4 hrs
Mechanical
- Dimensions108 x 67 x 21 mm (L x W x D)
- Weight165 g
- Protection ClassIP67
- MountingMagnetic Holder or Cable Zip-Tie
Sensor Performance
- Temperature Range-30°C to 70°C
- Temp Accuracy±0.5°C
- Temp Resolution0.1°C
- Humidity Range0% to 100% RH
- Humidity Accuracy±3%
- Humidity Resolution1%
Connectivity
- Cellular4G (CAT-1), 2G
- Wi-Fi2.4GHz
- LocationCellular + Wi-Fi Triangulation
- Global Roaming190+ Countries
Power & Battery
- Battery TypeLi-ion, 8000 mAh
- Runtime1-Year on Single Charge
- ChargingUSB-C 5V
- Recharge Time~12 Hours
Additional Sensors
Expand Anchor's capabilities with precision external sensors
Temp RH Probe
Temperature & Humidity Sensor
From
₹3,599
High-accuracy dual-parameter probe measuring temperature and relative humidity for cold chain, pharma, and cleanroom environments. Plugs directly into Anchor's external probe port for extended reach monitoring.
-40–125°C
Temp Range
±0.1°C
Temp Accuracy
0–100%
RH Range
±1% RH
RH Accuracy
0.1°C
Resolution
PT-100 Probe
Industrial Platinum RTD Sensor
From
₹2,799
Platinum RTD probe with extended range ideal for deep-freeze chambers, industrial processes, and high-precision lab measurements via Anchor's external probe port.
-200–200°C
Range
±0.5°C
Accuracy
0.1°C
Resolution
Pt100 RTD
Sensor Type
100Ω @ 0°C
Resistance
Wireless Alarm
On-Site Audible & Visual Alerts
From
₹4,999
Wireless alarm triggered instantly when Anchor detects a temperature or humidity breach. Provides loud audible and visual on-site alerts without relying on mobile or dashboard access.
85–95 dB
Sound Level
Sound + Light
Alert Type
< 1 sec
Response
9–24V DC
Power
Built-in
Backup
Mindlabs Cloud Platform
Real-Time SMS, Email, alerts
Add multiple users & user groups
Integration to third party systems
Download reports, share with customers
21 CFR Part 11 compliant and audit logs
Compliance:
Ready for pharmaceuticals
21 CFR Part 11 compliant
Electronic records & audit trail compliance
CSV documentation
Computer System Validation documentation
Approved by Major Airlines
Frequently Asked Questions
Everything you need to know about our temperature data loggers
An IoT temperature data logger records temperature and sends data to the cloud in real time using 4G, 2G, or Wi-Fi connectivity.
It measures temperature and humidity and transmits data to a cloud dashboard for remote monitoring and alerts.
It ensures electronic records, audit trails, and user access controls meet FDA compliance requirements.
Yes, they send instant SMS and email alerts when temperature or humidity crosses set limits.
A cleanroom monitoring system tracks environmental conditions like temperature and humidity to maintain controlled compliance standards.
They are used in pharmaceutical storage, hospitals, laboratories, warehouses, and regulated facilities.
